Located in the heart of Addis Ababa, Tariku Metals stands as a trusted partner for industry, providing high-quality materials built for demanding environments. We are proud to supply robust Nickel Alloy 201 bars and rods, a product line chosen for its exceptional reliability. Our commitment is to deliver not just metal, but dependable solutions that support the growth and integrity of your critical projects, ensuring you have the right foundation for success.
This particular alloy is primarily composed of nickel, making it highly resistant to corrosion, especially in caustic environments. It maintains excellent mechanical properties, including good ductility and a high tensile strength, even when faced with elevated temperatures. Its low carbon content is a key feature, providing outstanding performance in applications involving high temperatures where resistance to carburization is essential.
| Grade | Nickel 201 |
|---|---|
| Specification | UNS N02201, ASME SB160/ASTM B160 |

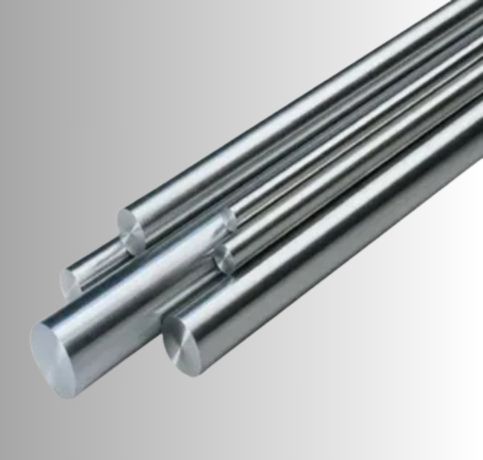

| Round bar size | Dia: 3mm~800mm |

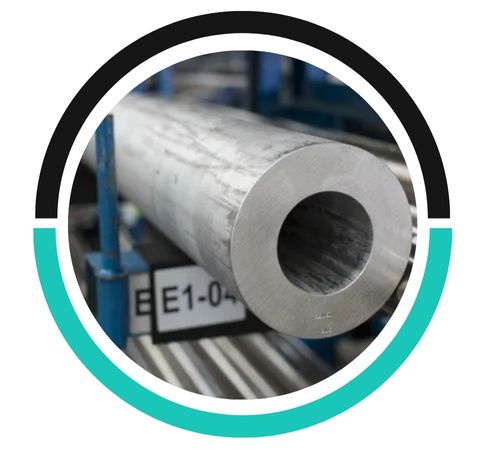

| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |

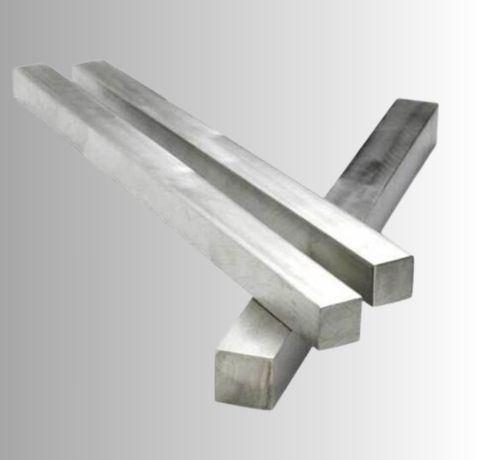

| Square bar size | 4mm to 100mm |

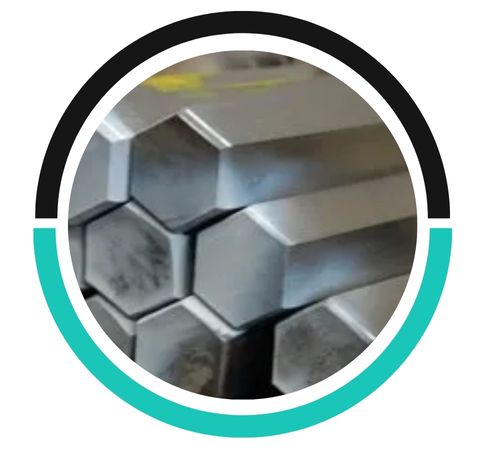

| Hex Bar size | 2mm to 100mm A/F |

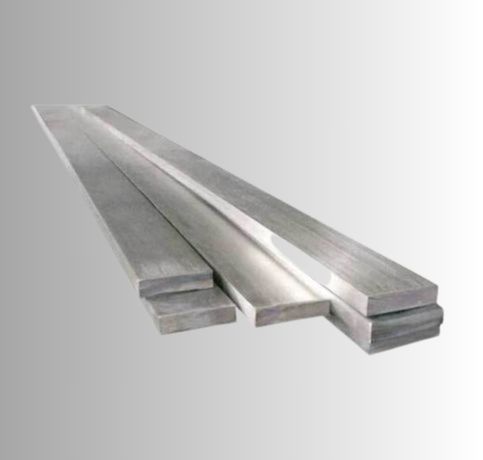

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75mm section; 5 to 6mm thickness |

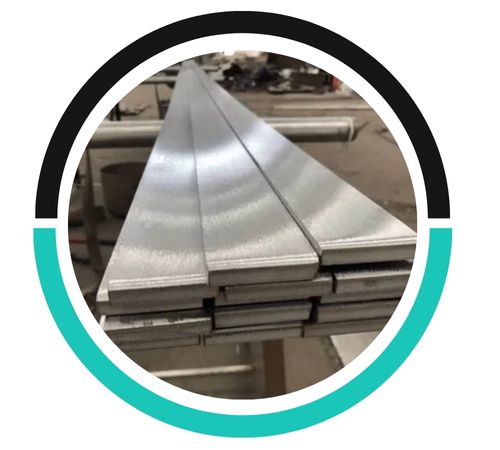

| Flat bar size | Thickness: 2mm to 100mm |
| Width: 10mm to 500mm | |
| Hollow Bar | 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter) |
| Angle bar size | 3*20*20~12*100*100 |

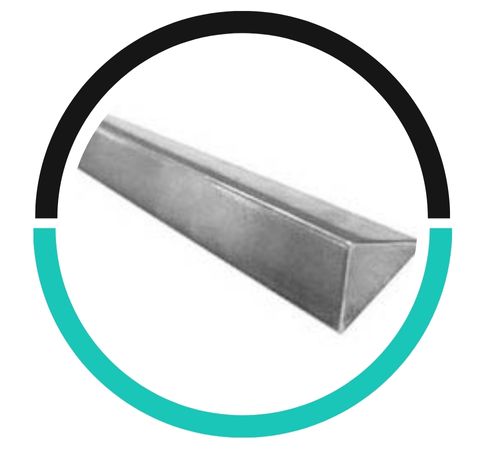

| Form | Rings, Hollow, Flat Bar, Rectangle, Triangle, Square,Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Round, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Tolerance | H8, K12, H10, H11, K10, H9, K11, K9, H12, H13, or custom |
| Technique | Forged Round Bar, Rod, Hot Rolled, Cold Drawn, Cold Rolled, |
| Condition | annealed, Hardened and tempered |
| Surface | Polished, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Bright, Hairline |
|
Grade |
Fe |
Si |
C |
S |
Ni |
Mn |
Mg |
Cu |
Ti |
|---|---|---|---|---|---|---|---|---|---|
|
Nickel 201 |
0.4 max |
0.2 max |
0.02 max |
0.01 max |
99.0 min |
0.35 max |
0.15 max |
0.25 max |
0.1 max |
|
Density |
Elongation |
Tensile Strength |
Melting Point |
Yield Strength (0.2%Offset) |
|---|---|---|---|---|
|
8.9 g/cm3 |
45 % |
Psi – 67000 , MPa – 462 |
1446 °C (2635 °F) |
Psi – 21500 , MPa – 148 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
GOST |
BS |
JIS |
EN |
|---|---|---|---|---|---|---|---|
|
Nickel 201 |
N02201 |
2.4068 |
– |
НП-2 |
NA 12 |
NW 2201 |
NLC-Ni 99 |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |

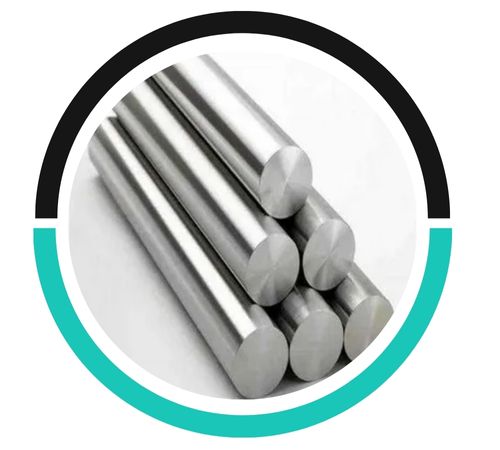

Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm).
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Yes, Nickel Alloy 201 rods can be welded using various welding techniques, including TIG and MIG welding.
Nickel Alloy 201 bars exhibit excellent corrosion resistance, high thermal conductivity, good mechanical properties, and outstanding weldability, especially in reducing environments.

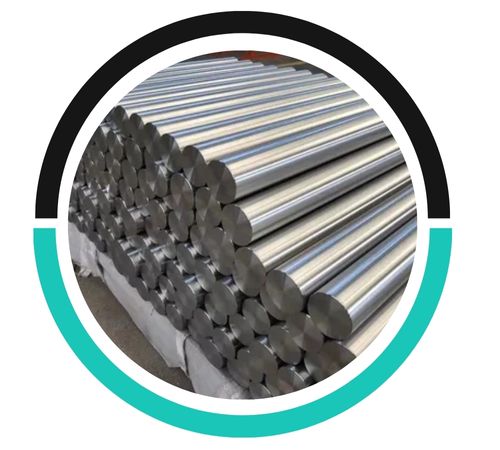

Nickel Alloy 201 rods are available in various sizes, typically ranging from 1/8" to 3" in diameter, and come in finishes such as bright, polished, and cold drawn.
The strength of Nickel Alloy 201 bars and rods makes them indispensable across several key sectors. They are commonly used in chemical processing equipment, handling everything from caustic soda to various organic acids. You will also find them in aerospace components, food processing plants for their purity, and electrical and electronics applications. Their ability to perform reliably under thermal stress also makes them a go-to choice for heat exchangers and furnace parts, proving their versatility.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Tariku Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Addis Ababa, Ethiopia
