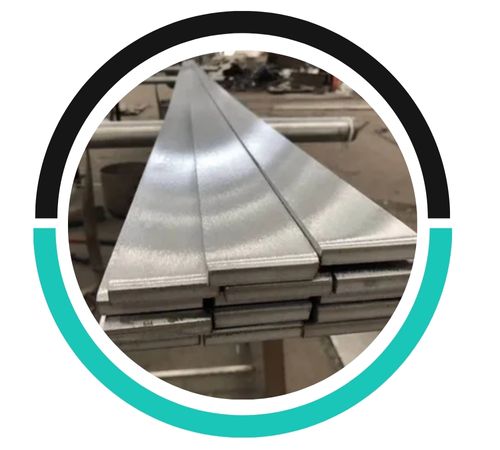

Welcome to Tariku Metals, your trusted partner in Addis Ababa for sourcing premium Permalloy bar and rod. We take pride in our local manufacturing capabilities, providing industries across Ethiopia and beyond with materials renowned for their exceptional magnetic performance. Our commitment is to deliver not just a product, but a reliable solution backed by technical expertise and a deep understanding of your specific engineering challenges. We are here to support your most demanding projects with materials you can count on.
The composition of our Permalloy is a carefully balanced nickel-iron alloy, typically containing about 80% nickel, which is the key to its unique characteristics. This specific formulation gives the material remarkably high magnetic permeability, meaning it magnetizes very easily, while also exhibiting exceptionally low core energy loss. Mechanically, it is a ductile material that can be machined to precise tolerances, though it does require specific annealing processes after fabrication to achieve its optimal soft magnetic properties.
| Standards : | — |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Bar |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| C | P | S | Mn | Si | Ni | Cr | Co | Mo | Cu | Fe | |
| 1J46 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.15-0.30 | 45-46.5 | – | – | – | ≤0.2 | Balance |
| 1J50 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 49-50.5 | – | – | – | ≤0.2 | Balance |
| 1J79 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.30-0.50 | 78.5-81.5 | – | – | 3.8-4.1 | ≤0.2 | Balance |
| 1J85 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 79-81 | – | – | 4.8-5.2 | ≤0.2 | Balance |
| Grade | Resisitivity (μΩ•m) | Desinty (g/cm3) | CuriePoint℃ | HighSaturatedmagneto-strictioncoefficient λθ/10-6 | Brinellhardness HBS | σbTensile Strength MPa | σsYieldStrength MPa | Elongation (%)δ | ||||
| unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | |||||
| 1J46 | 0.45 | 8.2 | 400 | 25 | 170 | 130 | 735 | 735 | 3 | |||
| 1J50 | 0.45 | 8.2 | 500 | 25 | 170 | 130 | 785 | 450 | 685 | 150 | 3 | 37 |
| 1J79 | 0.55 | 8.6 | 450 | 2 | 210 | 120 | 1030 | 560 | 980 | 150 | 3 | 50 |
| 1J85 | 0.56 | 8.75 | 400 | 0.5 | – | – | – | – | – | – | – | – |
Permalloy bars are generally not highly susceptible to galvanic corrosion, as they have good resistance to corrosion. However, when in contact with dissimilar metals, galvanic corrosion may still occur under certain conditions.
Yes, Permalloy bars can be welded, but due to their high nickel content, specialized welding techniques, such as TIG or laser welding, and proper precautions are necessary to maintain magnetic properties.

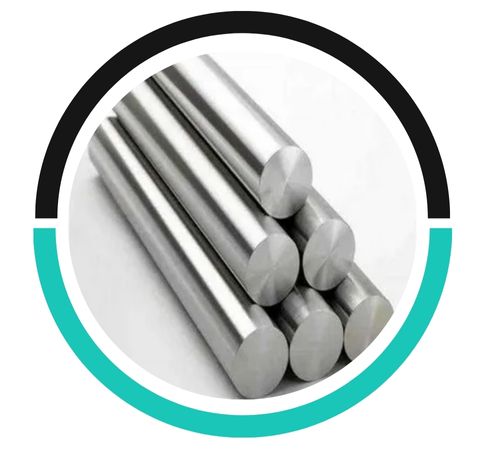

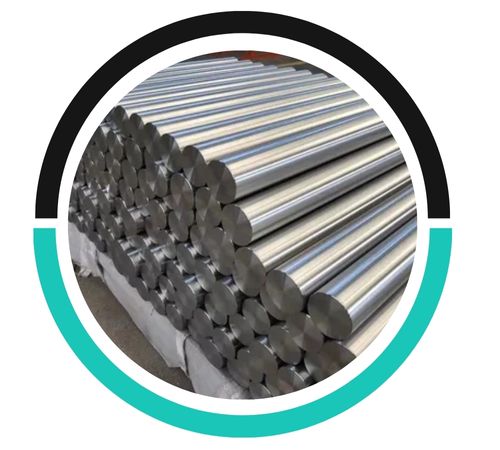

Permalloy rods are available in various sizes, typically ranging from 1/16" to 4" in diameter. Common finishes include bright, polished, or cold-drawn finishes, depending on the application requirements.
The primary use for Permalloy bar and rod is in applications where sensitive and efficient magnetic performance is absolutely critical. You will find it at the heart of high-performance transformers, current sensors, and magnetic shielding assemblies that protect sensitive equipment. It’s also essential in the manufacturing of various electrical components like inductors and relays. Essentially, any device that requires precise control or measurement of magnetic fields often relies on the unique capabilities of Permalloy to function accurately and efficiently.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
