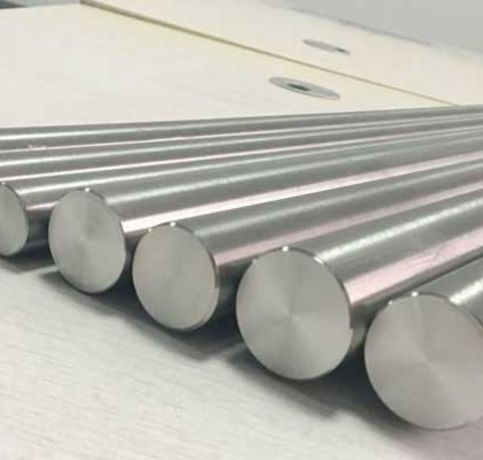

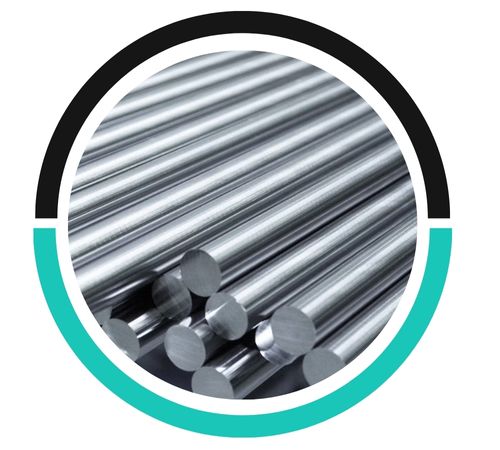

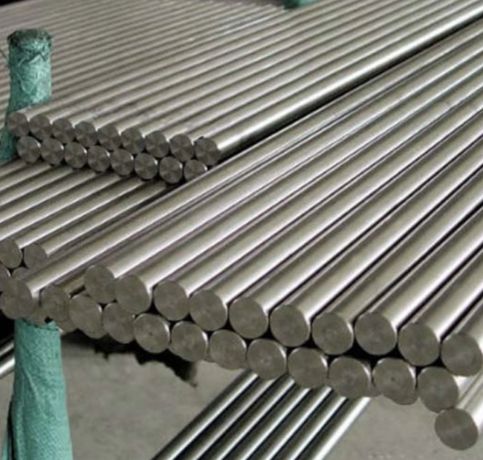

Based in the heart of Addis Ababa, Tariku Metals has established itself as a trusted source for high-performance materials, bringing world-class industrial solutions to the region. We specialize in supplying and manufacturing Tantalum R05400 bars and rods, a material chosen for its unparalleled reliability in the most demanding environments. Our commitment is to provide local industries with direct access to this exceptional metal, supporting growth and innovation with a product known for its extraordinary resilience and purity, sourced from a name you can count on.
The exceptional nature of Tantalum R05400 lies in its composition, being unalloyed tantalum of the highest purity, which is the standard for the industry. This grade is defined by its incredible resistance to corrosion, virtually unaffected by most acids and chemicals even at high temperatures. Mechanically, these bars and rods offer a unique combination of high strength and a notable degree of ductility, allowing them to be formed and fabricated for critical components. It also has a very high melting point, making it stable under extreme thermal stress.
| Specification | ASTM B365, ASME SB365 |

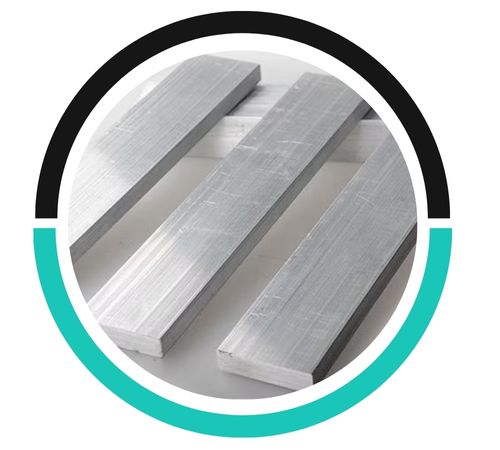

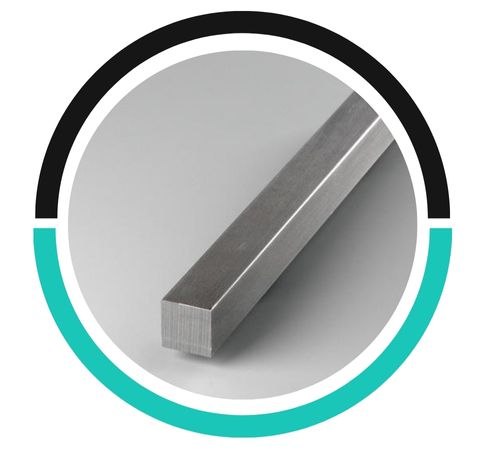

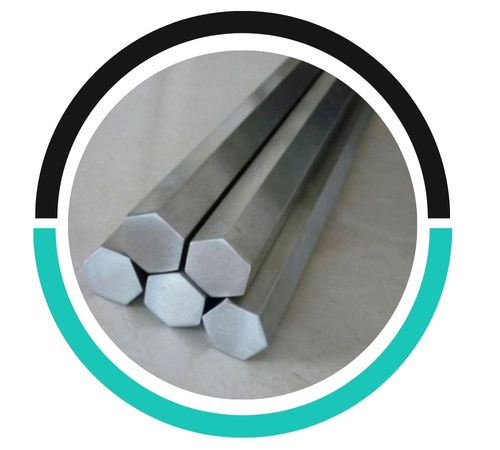

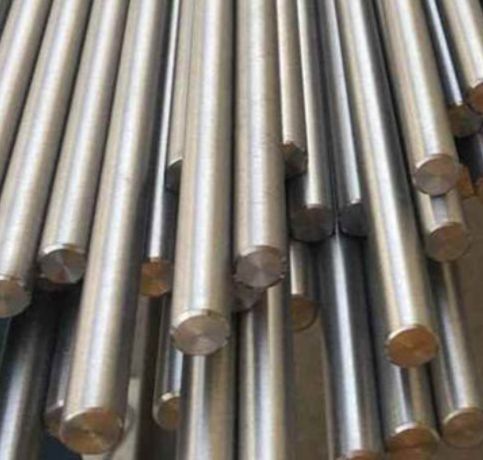

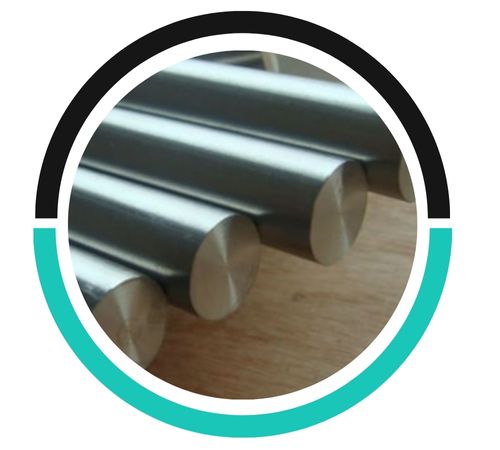

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Tantalum | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| R05400 | 0.010 | 0.03 | 0.010 | 0.0015 | 0.100 | 0.010 | 0.010 | 0.050 | 0.020 | 0.005 | 0.010 | Remainder |
| Tantalum Alloy Rods & Bars Mechanical Property | ||||
| Grade | Tensile strength “>， psi (MPa)， ≥ | Yield strength “>， psi (MPa)， ≥ | Elongation in 1 inch gage length， ％， ≥ | |
| RO5400 | 25000 (172) | 15000 (103) | 25 | |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Store Tantalum R05400 bars and rods in a clean, dry environment away from moisture and corrosive substances. Use protective covers or packaging to prevent contamination, scratches, or physical damage during storage.
Tantalum R05400 can withstand extremely high temperatures, up to approximately 3,000°C (5,432°F) in a vacuum or inert atmosphere. Its excellent heat resistance makes it ideal for high-temperature applications.
Because of its remarkable properties, Tantalum R05400 bars and rods are indispensable in sectors where failure is not an option. You will find them at the core of chemical processing equipment, such as heat exchangers and reactor vessels, where they withstand highly corrosive acids. The electronics industry relies on them for sputtering targets and capacitor components, while their biocompatibility makes them ideal for surgical implants and medical instruments. They are also crucial in furnace construction, aerospace components, and anywhere extreme conditions demand a material that simply will not compromise.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
