Welcome to Tariku Metals, your trusted source in Addis Ababa for high-performance titanium solutions. As a dedicated manufacturer and supplier, we take pride in providing industry-leading Titanium Grade 7 Bars and Rods, engineered to meet the most demanding challenges. We understand that reliability and material integrity are paramount for your critical projects, which is why our products are crafted with precision and a commitment to supporting Ethiopia’s growing industrial and technological sectors with world-class materials you can depend on.
Titanium Grade 7 is distinguished by its unique composition, which includes a small but crucial addition of palladium. This enhancement significantly boosts its corrosion resistance, particularly in reducing environments. The alloy maintains the excellent strength-to-weight ratio and overall toughness common to titanium. Specifically, it offers exceptional resistance to crevice and pitting corrosion, making it far superior to commercially pure grades when faced with aggressive chemical exposures, all while retaining good formability and weldability.
| Grade | ASTM B348 Ti Gr7 Flat Bar |
|---|---|

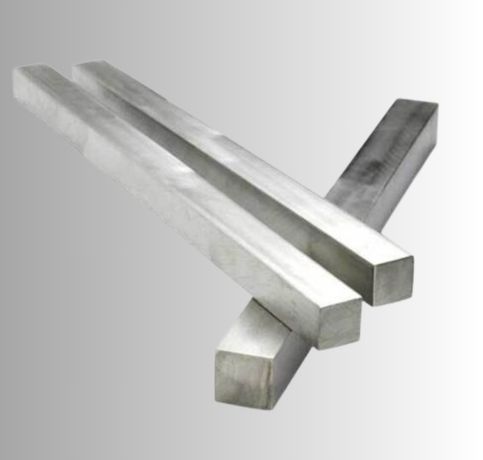

| Titanium Grade 7 Square bar size | 4 to 100mm |

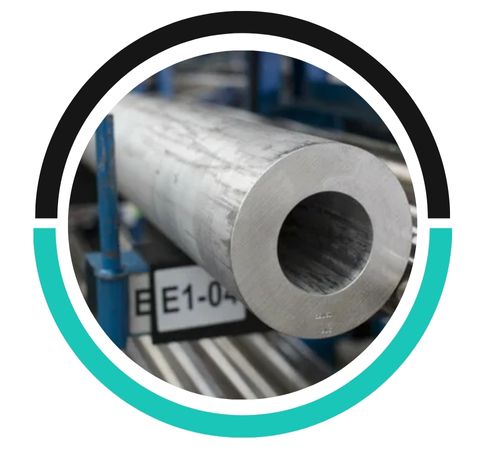

| Titanium Alloy Grade 7 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

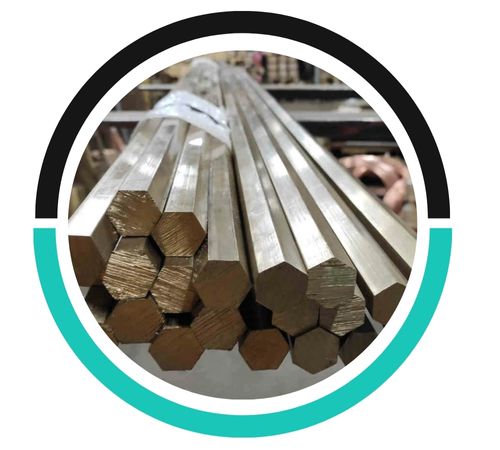

| CP Titanium Alloy Gr7 Hex Bar size | 2-100mm A/F |
| Titanium Grade 7 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

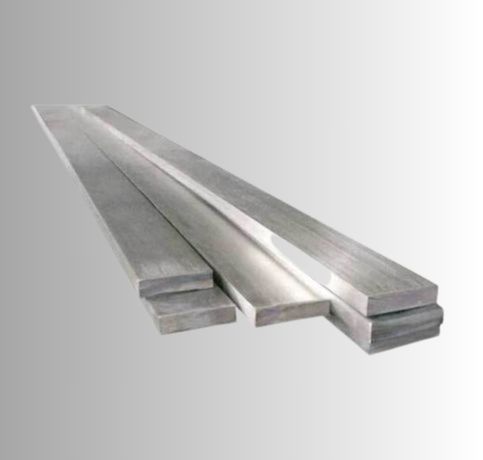

| Titanium Alloy Grade 7 Rectangles Size | 33 x 30mm to 295 x 1066mm |

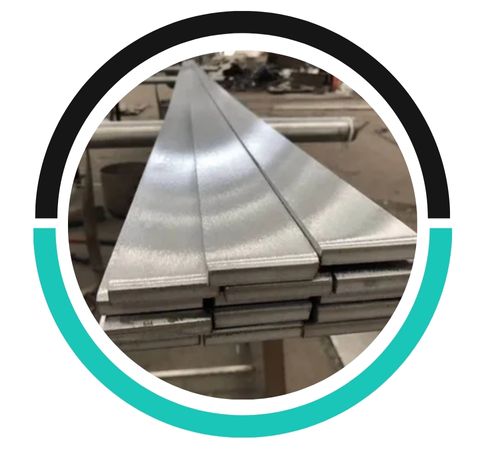

| CP Titanium Alloy Gr7 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Titanium Grade 7 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Alloy Grade 7 Section | 3.0 to 12.0mm thickness |

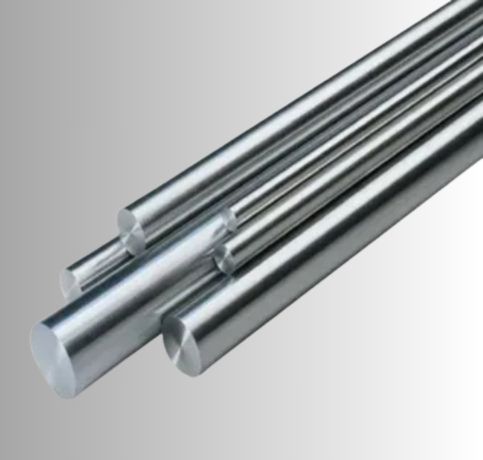

| CP Titanium Alloy Gr7 Round bar size | Diameter: 3-~800mm |
| Titanium Grade 7 Billet Size | 1/2″ to 495mm Diameter |
| Titanium Alloy Grade 7 Round Bar Standard Dimensions | Diameter / Height: |
| Titanium Grade 7 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Alloy Grade 7 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| CP Titanium Alloy Gr7 Technique | Titanium Grade 7 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Titanium Grade 7 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

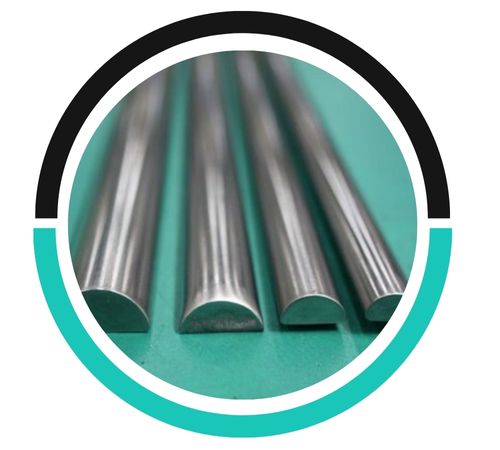

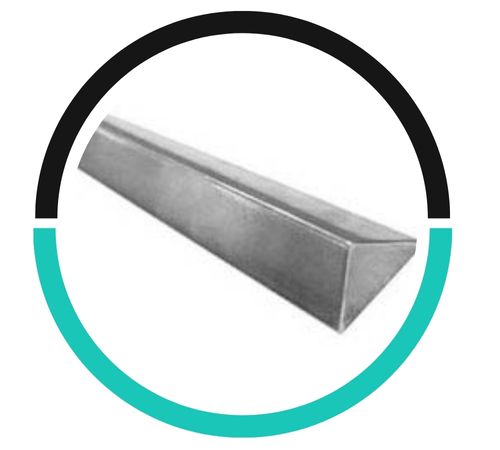

| Form | Titanium Grade 7 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Titanium Grade 7 Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 7 | 3.7235 | R52400 |
| Grade | C | Fe | N | Ti | H | O | Pd |
| Titanium Gr. 7 | 0.08 max | 0.30 max | 0.03 max | Balancen | 0.0150 max | 0.25 max | 0.20 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3 | 1668 °C | Psi – 39900 , MPa – 275 | Psi – 59500 , MPa – 410 | 20 % |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

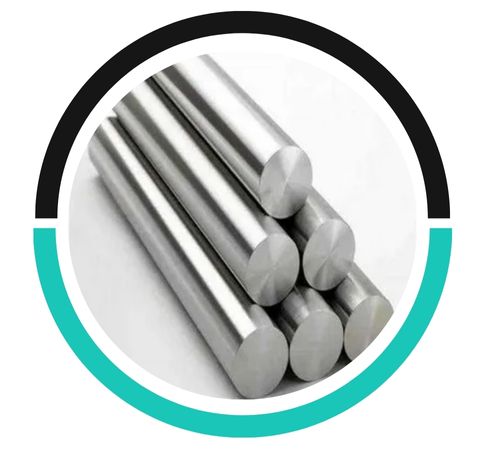

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 7 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 7 Bars and Rods can be recycled. Titanium is highly recyclable without significant degradation of its properties, making it an environmentally sustainable material for reuse in various applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@tarikumetal.com
No, Titanium Grade 7 Bars and Rods do not attract magnets. Titanium, including Grade 7, is a non-ferromagnetic material, meaning it has little to no magnetic properties and is not attracted to magnets.
The superior corrosion resistance of our Titanium Grade 7 Bars and Rods makes them indispensable for challenging applications. They are ideally suited for chemical processing equipment, where they handle aggressive acids and chlorides. You will also find them essential in pollution control scrubbers, marine components, and nuclear fuel reprocessing. Within Ethiopia and beyond, these materials are critical for constructing durable, long-lasting infrastructure in power generation, desalination plants, and any project where longevity in a corrosive environment is a primary concern for success.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
