Tariku Metals, based in Addis Ababa, Ethiopia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Titanium Grade 11 Forgings. Known for their meticulous craftsmanship and state-of-the-art manufacturing facilities, the company is committed to upholding international standards. By blending cutting-edge metallurgical techniques with strict quality control, Tariku Metals produces forgings that offer outstanding reliability, strength, and resistance to corrosion. Catering to sectors like aerospace, chemical processing, marine, and energy, Tariku Metals is dedicated to maintaining a strong reputation for excellence, innovation, and customer satisfaction both locally and globally.
Titanium Grade 11 Forgings from Tariku Metals are primarily made of titanium, with a touch of palladium (between 0.12% and 0.25%) added to boost corrosion resistance, especially in reducing and mildly oxidizing environments. These forgings are known for their outstanding weldability, formability, and toughness. They provide a tensile strength of about 370 MPa, a yield strength of roughly 240 MPa, and an elongation of around 24%. Grade 11 beautifully marries the strength and ductility of commercially pure titanium with exceptional corrosion resistance, making it an excellent choice for demanding applications that require both reliability and durability.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

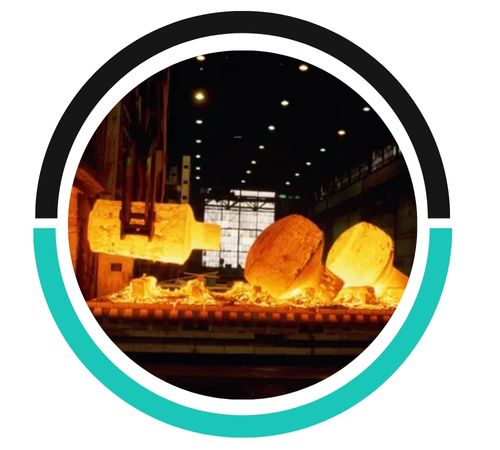

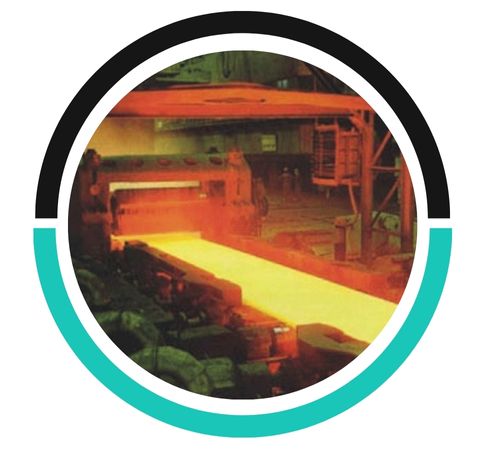

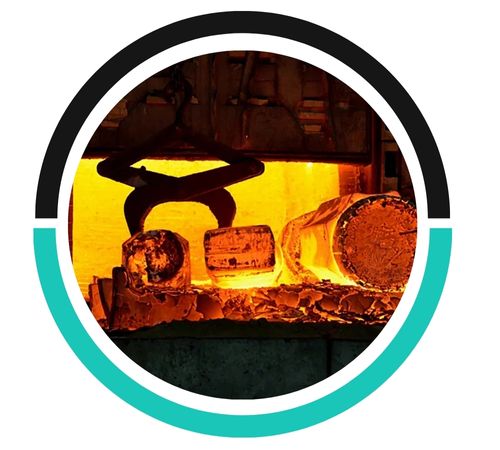

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 11 | 08 max | 03 max | 25 max | 015 max | Bal | 0.30 max | – | 12 – .25 |
| Grade | Tensile Strength min | Yield Strength (0.2 % Offset) | Elongation | Reduction of Area | ||
| ksi | Mpa | ksi | Mpa | min % | min % | |
| 11 | 35 | 240 | 25 | 170 | 24 | 30 |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52550 |
Yes, Titanium Gr 11 forgings are highly corrosion-resistant, especially to oxidizing environments and seawater. This makes them ideal for applications in industries like aerospace, marine, and chemical processing, ensuring long-lasting durability.
Titanium Gr 11 forgings are commonly used in industries such as aerospace, marine, chemical processing, medical, and power generation. Their strength, corrosion resistance, and high-performance capabilities make them ideal for demanding applications.
Yes, Titanium Gr 11 forgings can be customized for specific applications, offering tailored sizes, shapes, and properties to meet unique industry requirements, ensuring optimal performance and reliability in demanding environments.
Titanium Grade 11 Forgings are a go-to choice in industries where durability and resistance to corrosion are a must. In the chemical and marine fields, you’ll find them in heat exchangers, pressure vessels, pumps, and piping systems that come into contact with seawater and other harsh substances. The aerospace sector also relies on these forgings for their lightweight yet robust structural components. In power generation, they play a crucial role in condenser tubing and cooling systems. Plus, the medical industry takes advantage of their biocompatibility for surgical and orthopedic tools. At Tariku Metals, we make sure that every forging meets strict performance standards for high-stress, high-temperature, and corrosive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
